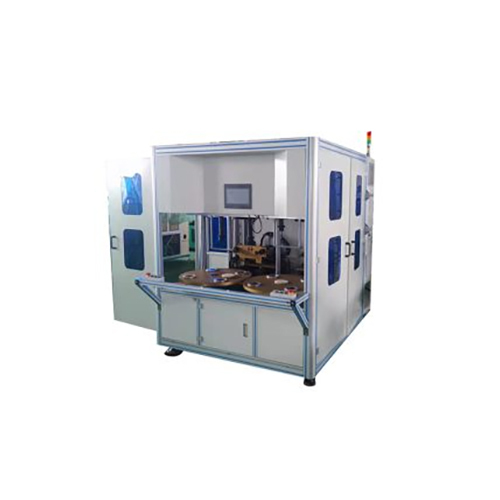

KZL-228 Automatic Stator Coil Winding Machine With 4 Heads 8 Poistions
Product Details:
- General Use Coil Winding
- Material Stainless Steel
- Weight (kg) 3000 Kilograms (kg)
- Automatic Yes
- Control System Human-Machine Interface
- Power Source Electric
- Power Consumption 10 Kilo Watt (W)
- Click to View more
X
KZL-228 Automatic Stator Coil Winding Machine With 4 Heads 8 Poistions Price And Quantity
- 1 Unit
KZL-228 Automatic Stator Coil Winding Machine With 4 Heads 8 Poistions Product Specifications
- Low Energy Consumption
- 3000 Kilograms (kg)
- Electric
- Yes
- Human-Machine Interface
- 1800 x 1300 x 2200 Millimeter (mm)
- 10 Kilo Watt (W)
- Stainless Steel
- Coil Winding
KZL-228 Automatic Stator Coil Winding Machine With 4 Heads 8 Poistions Trade Information
- Cash in Advance (CID)
- 10 Unit Per Month
- 30 Days
- All India
Product Description
The KZL-228 Automatic Stator Coil Winding Machine is a high-performance solution designed for precision and efficiency in coil winding operations. Equipped with 4 winding heads and 8 working positions, it ensures optimal productivity. This machine supports a wide range of wire diameters (0.15-1.2 mm) and insulation materials, including copper, aluminum, and copper-clad aluminum wires, making it highly versatile. Designed with a robust stainless steel body and utilizing a Human-Machine Interface for seamless control, the machine delivers precise results while consuming only 10 KW of power. Compact dimensions of 1800 x 1300 x 2200 mm and a net weight of 3000 kg make it suitable for industrial use. Built for adaptability, it accommodates motor poles ranging from 2 to 8 and stator overlapping thicknesses between 15-65 mm. With its low energy consumption and air pressure requirement of 0.5-0.7 Mpa, the KZL-228 ensures efficient and reliable operations.
Automatic Stator Coil Winding Machine Technical Specifications:
| Specifications | Parameter |
| Model No. | KZL-228 |
| Work Stations (Winding Heads): | 4 Heads - 8 Positions |
| Fly Fork Diameter: | 180-240 mm |
| Adaptive Wire Diameter: | 0.151.2 mm |
| Insulation Wire Materials | Copper wire, Aluminum wire, Copper clad aluminum wire |
| Applicable Motor Poles: | 2/4/6/8 |
| Suitable Stator Overlapping Thickness: | 15-65 |
| Air Pressure: | 0.5-0.7 Mpa |
| Power: | 10 KW |
| Net Weight: | 3000 KG |
| Diamension: | 1800 x 1300 x 2200 mm |
FAQs of KZL-228 Automatic Stator Coil Winding Machine With 4 Heads 8 Poistions:
Q: What is the wire diameter range supported by the KZL-228?
A: It supports wire diameters ranging from 0.15 mm to 1.2 mm.Q: What materials can be used for insulation wires?
A: Copper wires, aluminum wires, and copper-clad aluminum wires are compatible.Q: How many motor poles does this machine support?
A: The machine supports 2, 4, 6, and 8 motor poles.Q: What is the air pressure requirement for operation?
A: The machine requires an air pressure between 0.5 and 0.7 Mpa.Q: Is the machine energy-efficient?
A: Yes, it has features for low energy consumption and uses only 10 KW of power.Tell us about your requirement
